Learning objectives (IP → H2 bridge)

By the end, you can:

1. Explain that every physical quantity = magnitude + unit.
2. Recall the 7 SI base quantities and use them to form derived units.
3. Use SI prefixes correctly (including the 2022 additions) and convert units swiftly.
4. Convert using standard form (scientific notation) and consistent significant figures.
5. Measure length (ruler, Vernier, micrometer) and time (stopwatch, pendulum) with zero-error checks.
6. Distinguish precision vs accuracy, and random vs systematic errors; quote uncertainties properly.
7. Record raw data, process with the right s.f./d.p. rules, and propagate uncertainties.
8. Present and interpret graphs (best-fit, gradient, intercept, error bars).
9. State precautions (safety + accuracy) and propose realistic improvements.
10. (H2 extension) Use dimensional homogeneity and vector decomposition confidently.

1 Physical quantities and SI units

A physical quantity is any measurable property (e.g., mass of a printer, area of a pool, speed of a bicycle). A valid measurement states both a number and a unit: example, mass = $12\mathrm{kg}$ (12 is the magnitude; kg is the unit). Missing units costs marks and blocks unit-checking.

1.1 SI base quantities

Mini-drill: Write the unit of gravitational field strength. Answer: $\mathrm{N}\cdot \mathrm{k}{\mathrm{g}}^{-1}$ (equivalently $\mathrm{m}\cdot {\mathrm{s}}^{-2}$).

1.2 Derived quantities and dimensional homogeneity

Build derived units from base units:

Dimensional check example
Verify $s=ut+\frac{1}{2}a{t}^2$.

• $[s]=\mathrm{m}$
• $[ut]=\mathrm{m}\cdot {\mathrm{s}}^{-1}\text{with}\mathrm{s}\to \mathrm{m}$
• $[a{t}^2]=\mathrm{m}\cdot {\mathrm{s}}^{-2}\text{with}{\mathrm{s}}^2\to \mathrm{m}$

All terms reduce to metres.

2 SI prefixes (and how not to lose marks)

Why: Compact notation and fast conversions.
Exam cue: Do not mix decimal prefixes with powers of 2. For example, 1 kbit = 1000 bit, not 1024.

3 Precision, accuracy and error types

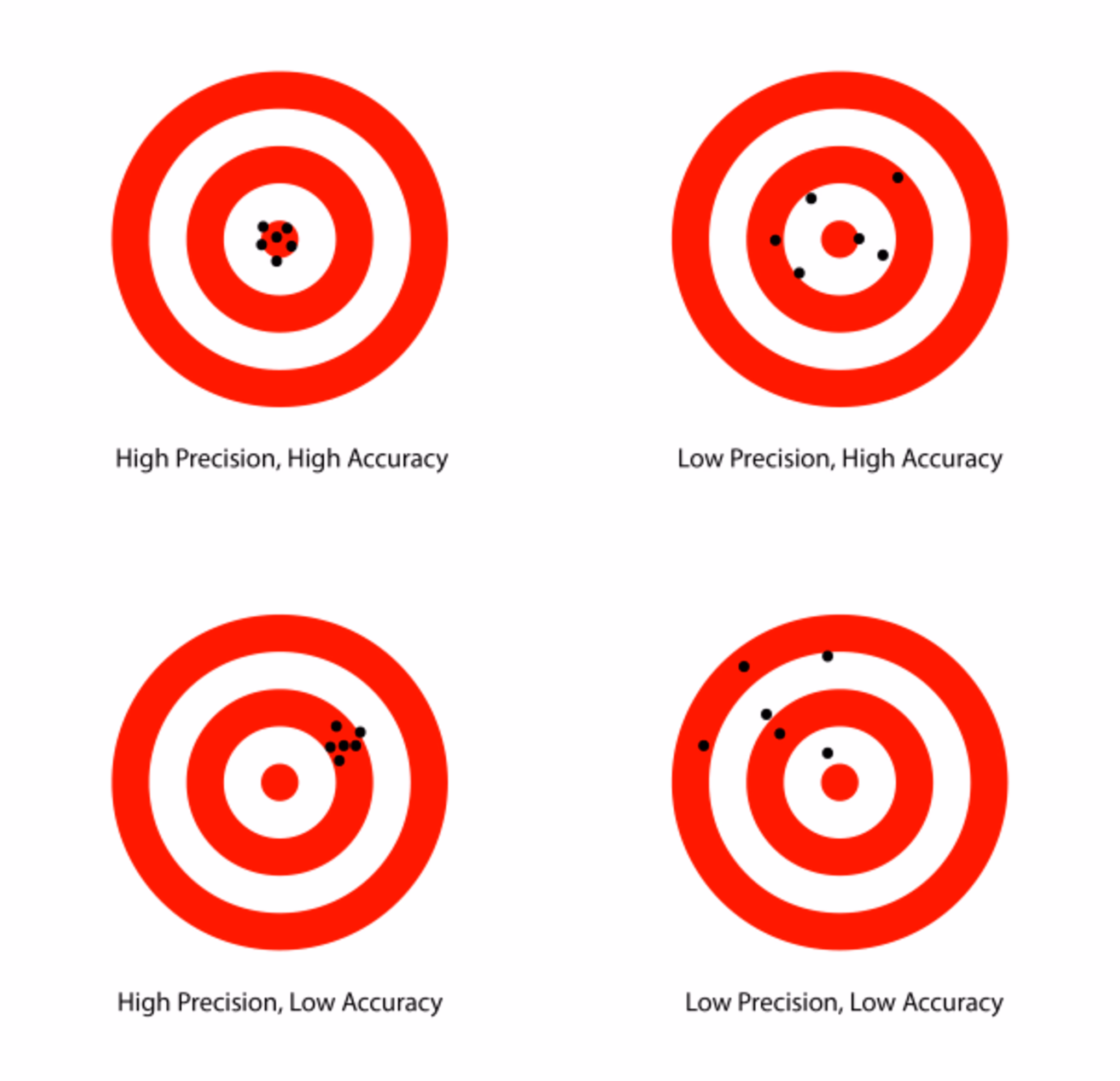

Precision = reproducibility (readings cluster tightly).
Accuracy = closeness to true value (cluster at the bullseye).

• Random errors (hurt precision): fluctuate in sign and magnitude (e.g., parallax, reaction time, background vibration). Reduce by repetitions and averaging.
• Systematic errors (hurt accuracy): constant bias each time (e.g., zero error, miscalibration). Detect via standards and correct arithmetically.

Language to use in answers
"Random error increases the scatter of repeated readings (poor precision) and is reduced by taking many readings and averaging."
"Systematic error shifts all readings in one direction (poor accuracy) and is corrected by subtracting or adding the zero error or recalibrating."

3.1 Significant figures vs decimal places

• Significant figures (s.f.): digits that convey precision. Rules: all non-zeros; zeros between non-zeros; trailing zeros only if a decimal point is present.
• Decimal places (d.p.): digits to the right of the decimal point, regardless of significance.

Recording rule of thumb

• Analogue instrument: uncertainty = $\pm \frac{1}{2}$ of the smallest division.
• Digital instrument: uncertainty = $\pm 1$ least significant digit.

4 Scientific notation (standard form)

Express numbers as $N\times 10^n$ with $1\le N<10$ and integer $n$.

• Move decimal left → $n>0$; move right → $n<0$.
• Significant figures live in $N$.

Examples
$5,600=5.6\times 10^3$ $9,020,000=9.02\times 10^6$ $0.0045=4.5\times 10^{-3}$

5 Converting units (factor-label method)

Steps

1. Separate number and unit.
2. Choose conversion factor(s) so units cancel.
3. Multiply through.
4. Round to sensible s.f. (match the given data).

Speed

Volume

Density

2D/3D Units - The Square/Cube Trap

If $1\mathrm{m}=100\mathrm{cm}$, then $1{\mathrm{m}}^2=100^2\mathrm{c}{\mathrm{m}}^2=10^4\mathrm{c}{\mathrm{m}}^2$

Unit power checkpoint

When a conversion involves area, volume, density, or pressure, convert the unit power before substituting into a formula.

Misconception check: do not convert $\mathrm{c}{\mathrm{m}}^2$ or $\mathrm{c}{\mathrm{m}}^3$ by moving the decimal point only once. The exponent on the unit tells you how many times the length conversion applies.

6 Measuring length (least counts, zero errors, readings)

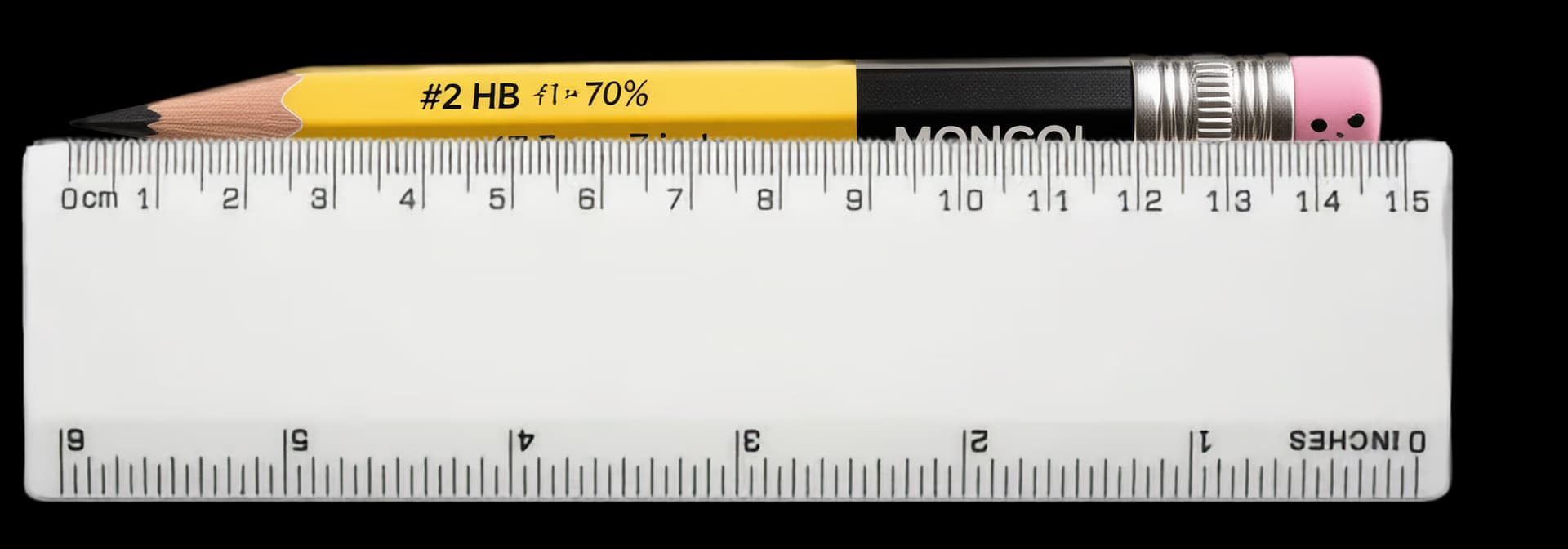

6.1 Ruler (scale)

• Least count: $1\mathrm{mm}\left(0.1\mathrm{cm}\right)$.
• Method: align with zero; avoid parallax; estimate to half-division if needed.
• Quote: $12.35\mathrm{cm}\pm 0.05\mathrm{cm}$ when you align the object with the zero mark, so only the far end contributes $\pm$ half a division.
• Quoting via difference (e.g., left end at $3.20\mathrm{cm}$, right end at $15.40\mathrm{cm}$) carries $0.05\mathrm{cm}$

6.2 Vernier calipers

• Typical least count: $0.10\mathrm{mm}=0.01\mathrm{cm}$.
• Reading:
  $\text{Measurement}=\text{main scale}+(\text{Vernier coincidence})\times \text{least count}$.
• Zero error: close jaws; if Vernier zero is right of main zero $⟹$ positive zero error; left $⟹$

Worked
$\text{Main}=0.30\mathrm{cm}$; $\text{Vernier coincidence}=7$; $\text{least count}=0.01\mathrm{cm}$
$\text{Measured}=0.30+7(0.01)=0.37\mathrm{cm}$

6.3 Micrometer screw gauge

• Least count: $0.01\mathrm{mm}\left(0.001\mathrm{cm}\right)$.
• Use: place between anvil and spindle; tighten with ratchet to avoid over-torque (backlash).
• Reading:
  $\text{Measurement}=\text{Sleeve reading}+(\text{Thimble reading})\times \text{least count}$.
• Zero error and correction as above.

Left Worked Example
Sleeve = $4.50\mathrm{mm}$; Thimble = $22$; least count = $0.01\mathrm{mm}$
Measured $=4.50+22(0.01)=4.72\mathrm{mm}$.

Right Worked Example
Sleeve = $4.00\mathrm{mm}$; Thimble = $22$; least count = $0.01\mathrm{mm}$
Measured $=4.00+22(0.01)=4.22\mathrm{mm}$.

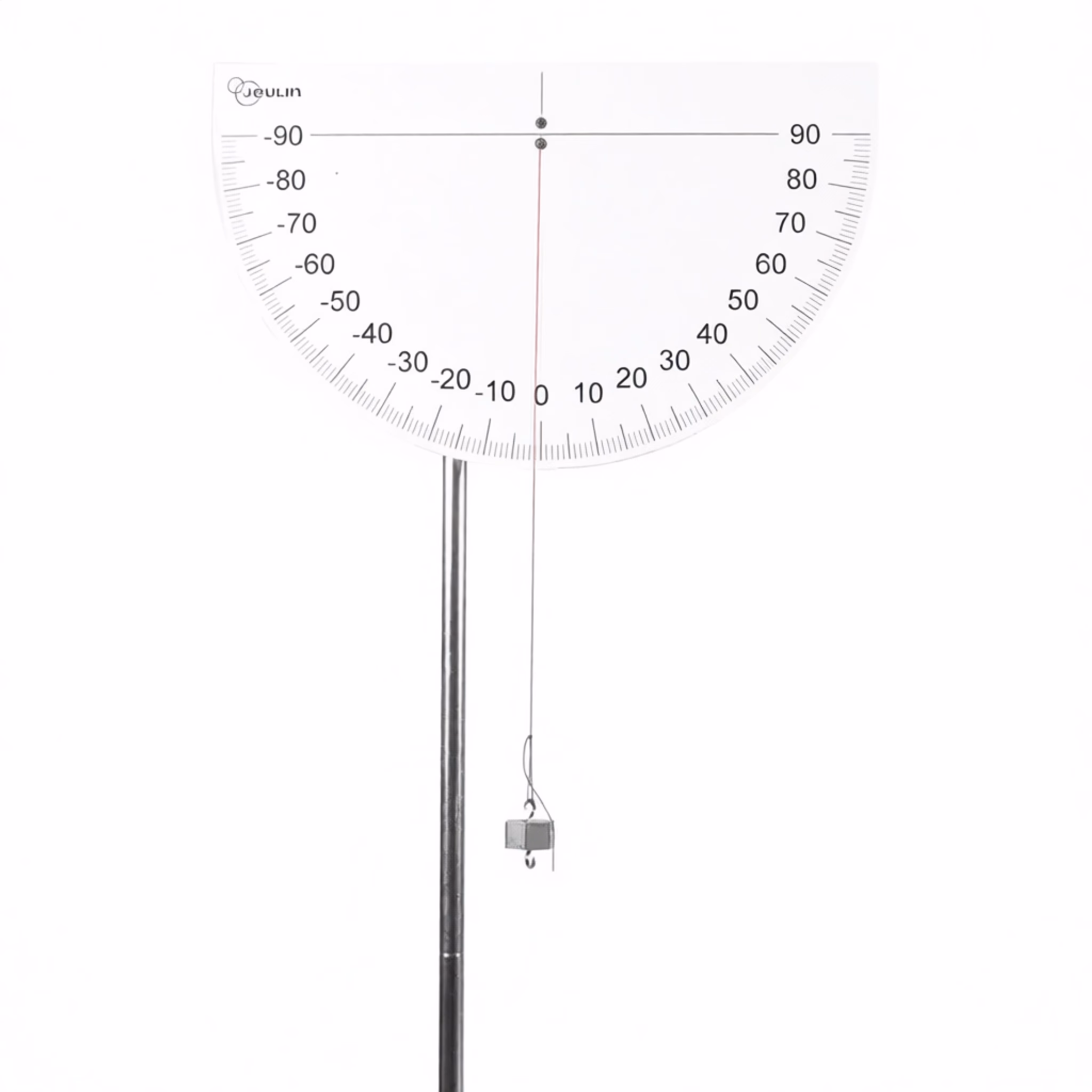

7 Measuring time - the simple pendulum

Period $T$: time for one full oscillation. For small angles (less than about 10 degrees),

$$T=2\pi \sqrt{\frac{L}{g}}$$

which implies a straight-line test:

$$T^2=\frac{4{\pi }^2}{g}L$$

Equipment: string, dense bob, rigid support, ruler/tape (for $L$), stopwatch, small-angle release.

Method (marks-friendly)

1. Measure $L$ from pivot to the centre of mass of the bob.
2. Displace by a small angle; release without push; swing in one plane.
3. Time $N=20\text{ to }30$ oscillations through the lowest point; repeat 3 to 5 trials.
4. Compute $T=\frac{\text{total time}}{N}$; average across trials.
5. Plot $T^2$

Common errors and mitigation

• Reaction time → time many oscillations; start/stop at mid-point.
• Large angle → increases period; keep less than about 10 degrees.
• Pivot friction or air drag → smooth pivot; dense small bob.
• Length mis-measured → measure to bob centre, not edge.
• Elliptical path → steady release in a single plane.

8 Recording and processing raw data

8.1 Tabulation rules

• First column = independent variable (increasing order, regular intervals).
• At least 5 sets for linear, 7 for curved relationships.
• Repeat dependent readings and average.
• Include units in headers (e.g., Force / $\mathrm{N}$, Time / $\mathrm{s}$).

8.2 Quoting uncertainties

• Analogue: $\pm 1/2$ smallest division.
• Digital: $\pm 1$ in last displayed digit.
• For a mean of repeats, compute the half-range $\frac{1}{2}(\max -\min )$ of the repeated readings and compare it with the instrument's resolution-based uncertainty; quote whichever is larger so the stated error reflects both scatter and instrument limits.
  • Example: stopwatch readings $1.24\mathrm{s},1.28\mathrm{s},1.30\mathrm{s}$

8.3 Significant Figure Rules for Calculations

• Add/Subtract → answer follows the least d.p. among inputs.
• Multiply/Divide → answer follows the least s.f. among inputs.
• Functions (e.g., constants like $g=9.81\mathrm{m}\cdot {\mathrm{s}}^{-2}$) → treat constants as exact unless stated; round by the rule of the measured inputs.

8.4 Propagating uncertainties (H2)

For a general product or quotient with powers, add percentage uncertainties:

$$\frac{\Delta Q}{Q}=\frac{\Delta A}{A}+2\frac{\Delta B}{B}+\frac{\Delta C}{C}\text{for}Q=\frac{A{B}^2}{C}$$

For sums and differences, add absolute uncertainties.

WA hack: In Paper 4, a quick percentage-uncertainty estimate often suffices to justify the dominant source of error.

9 Graphing: presentation and interpretation

9.1 Pre-sketching

• Choose axes: $x$ = independent, $y$ = dependent.
• Use scales that fill at least half a page, based on $1-2-5-10$ steps.
• Label with quantity (unit), e.g., Force $\left(\mathrm{N}\right)$, Time $\left(\mathrm{s}\right)$.

9.2 Plotting

• Plot neat crosses or circled dots; include error bars if uncertainties are significant.
• Draw a best-fit straight line or smooth curve (not dot-to-dot). Aim for symmetric scatter around the line.

9.3 Post-sketch interpretation

• Gradient with units (e.g., $\mathrm{N}\cdot {\mathrm{m}}^{-1}$ for a force-extension graph).
• Intercept with physical meaning if applicable.
• State result with uncertainty and appropriate s.f.

Graph linearisation checkpoint

Before plotting, rewrite the relationship so it looks like $y=mx+c$. Then match the plotted y-axis, plotted x-axis, gradient, and intercept to the equation.

Worked check: for a pendulum graph of $T^2$ against $L$, the gradient has unit ${\mathrm{s}}^2\cdot {\mathrm{m}}^{-1}$. Since $m=\frac{4{\pi }^2}{g}$

Misconception check: a straight line is not enough. The axes decide what the gradient represents.

Spreadsheet tip (H2 → Paper 4)
Import data → XY scatter → trendline. Use =LINEST(Y, X, TRUE, TRUE) to obtain gradient ± SE. Round your final quoted value to match the least precise raw input.

10 Worked micro-example (Pendulum data → g)

Given (sample):

• $L=0.800\pm 0.001\mathrm{m}$
• Time for $20$ swings: $T_{20}=35.80,35.72,35.90\mathrm{s}$
• Mean $T_{20}=35.81\mathrm{s}\Rightarrow T=35.81/20=1.7905\mathrm{s}\Rightarrow T^2=3.207{\mathrm{s}}^2$

11 Scalars and vectors (H2 extension)

• Vector = magnitude + direction.
• Tip-to-tail for geometric addition; components for algebra: $F_x=F\cos \theta ,F_y=F\sin \theta$.

Vector component checkpoint

Before resolving a vector, choose the axes and angle reference first. The same physical vector can have different-looking component formulae depending on where $\theta$ is measured from.

Worked check: a $20\mathrm{N}$ force acts $30^{\circ }$ above the horizontal. The components are $F_x=20\cos 30^{\circ }=17.3\mathrm{N}$ and $F_y=20\sin 30^{\circ }=10.0\mathrm{N}$

Misconception check: components are not extra forces. They are the same vector rewritten along chosen perpendicular axes, so the original vector and its components should not be added together again.

12 Order-of-magnitude estimates (exam-savvy)

Use one-sig-fig anchors: classroom length ~ $8\mathrm{m}$; human reaction time ~ $0.2\mathrm{s}$. This prevents paralysis on open-ended items and keeps unit sense sharp.

13 Precautions (safety and accuracy)

13.1 Personal safety

• PPE: goggles for splashes or shards, gloves for hot or corrosive materials, lab coat.
• Handle glassware and electrics carefully; power off before circuit changes.
• Keep benches tidy; avoid trailing cables.

13.2 Experimental accuracy

• Calibrate or zero instruments (balances, meters, calipers).
• Parallax: eye level with scale or meniscus.
• Control variables: e.g., constant temperature for resistance experiments.
• Repeat and average to reduce random error.
• Environment: shield from drafts or vibration; allow equipment to settle.

14 Three WA timing rules (H2 practical mindset)

1. Use syllabus pacing as a guide: Paper 2/3 average ~1.6 min/mark; Paper 4 ~3 min/mark.
2. Start data questions by writing units before numbers.
3. Show working to bank method marks even if arithmetic slips.

Need structured practice on Quantities and Measurements? Our H2 Physics tuition programme covers this topic with weekly problem sets and Paper 4 practical drills.

15 References

• SEAB H2 Physics 9478 syllabus (2026)
• BIPM - SI Brochure, 9th Ed.
• NIST - SI Prefixes (2022 update)
• NIST Technical Note 1297 - Guidelines for Evaluating and Expressing Uncertainty
• Khan Academy - Vectors and scalars

Comprehensive revision pack

9478 Section I, Topic 1 Syllabus outcomes

Candidates should be able to:

• (a) recall and use the following SI base quantities and their units: mass (kg), length (m), time (s), current (A), temperature (K), amount of substance (mol).
• (b) recall and use the following prefixes and their symbols to indicate decimal sub-multiples or multiples of both base and derived units: pico (p), nano (n), micro (μ), milli (m), centi (c), deci (d), kilo (k), mega (M), giga (G), tera (T).
• (c) express derived units as products or quotients of the SI base units and use the named units listed in 'Summary of Key Quantities, Symbols and Units' as appropriate.
• (d) use SI base units to check the homogeneity of physical equations.
• (e) make reasonable estimates of physical quantities included within the syllabus.
• (f) show an understanding of the distinction between random errors and systematic errors (including zero error) which limit precision and accuracy.
• (g) assess the uncertainty in derived quantities by adding absolute or relative (i.e. fractional or percentage) uncertainties or by numerical substitution (rigorous statistical treatment is not required).
• (h) distinguish between scalar and vector quantities, and give examples of each.
• (i) add and subtract coplanar vectors.
• (j) represent a vector as two perpendicular components.

Concept map (in words)

Anchor every measurement workflow to four checkpoints: instrument choice → reading → uncertainty → communication. Start with SI units and prefixes, measure with calibrated tools (length/time), process data using significant-figure rules, and finish with dimensional analysis and vector awareness so that downstream mechanics/fields questions inherit consistent units. Graphing and uncertainty propagation sit in the middle, linking raw readings to conclusions.

Key definitions & formulae

Advanced derivations & reasoning

1. Log-linear transformation: show that $y=k{x}^n$ becomes $\ln y=\ln k+n\ln x$; slope gives the power directly.
2. Propagation via partial derivatives: outline $(\delta Q{)}^2=\sum (\partial Q/\partial x_i{)}^2(\delta x_i{)}^2$

Worked example - uncertainty propagation

A student measures cylinder radius $r=(12.50\pm 0.05)\mathrm{mm}$ and height $h=(68.0\pm 0.2)\mathrm{mm}$.

1. Calculate the volume $V=\pi r^{2}h$ in $\mathrm{c}{\mathrm{m}}^3$.
2. Quote absolute and percentage uncertainties.

Sketch solution

• Convert: $r=(1.250\pm 0.005)\mathrm{cm}$, $h=(6.80\pm 0.02)\mathrm{cm}$.
• $V=\pi (1.250{)}^2(6.80)=33.4\mathrm{c}{\mathrm{m}}^3$

Worked example - log-log gradient

Given data for a pendulum experiment, $\ln T$ vs $\ln L$ produces a gradient of $0.498\pm 0.012$. Explain the physical meaning and check consistency with theory. Answer: gradient ≈ 0.5, matching $T\propto L^{1/2}$, so the data supports the small-angle model within uncertainty.

Practical & data tasks to rehearse

• Design a mini-investigation measuring acceleration due to gravity using smartphone accelerometers; compare instrument resolution with traditional pendulum.
• Use spreadsheet regression to obtain best-fit line and standard error; practise quoting gradient ± uncertainty.
• Build a “zero-error” checklist for Vernier, micrometer and electronic balance readings; include photos/screenshots for reference.

Common misconceptions and exam traps

• Rounding intermediate values too early, causing final answers to lose accuracy.
• Omitting units in axis labels or data tables (automatic mark loss in Paper 4).
• Confusing precision with accuracy; remind yourself with the dartboard analogy.
• Forgetting to halve instrument least count for analogue readings.

Quick self-check quiz

1. State all seven SI base quantities. - Length, mass, time, electric current, thermodynamic temperature, amount of substance, luminous intensity.
2. Convert $4.8\mathrm{mA}$ to A in scientific notation. - $4.8\times 10^{-3}\mathrm{A}$.
3. A measured length is $12.34\mathrm{cm}\pm 0.02\mathrm{cm}$. What is the percentage uncertainty? - $\frac{0.02}{12.34}\approx 0.16\%$

Revision workflow

1. Redo two Paper 4 measurement questions with full tables and uncertainty propagation; compare with the official scheme.
2. Build a one-page “measurement formula sheet” covering uncertainties, logarithms and dimensional analysis.
3. Teach a peer how to read a micrometer and calibrate a stopwatch - explaining out loud cements the workflow.
4. Schedule a 20-question MCQ drill focusing purely on units and dimensional checks from past prelim papers.

Practice Quiz

Test yourself on the key concepts from this guide.

Last updated 14 Jul 2025. Next review when SEAB issues the 2027 draft syllabus.
